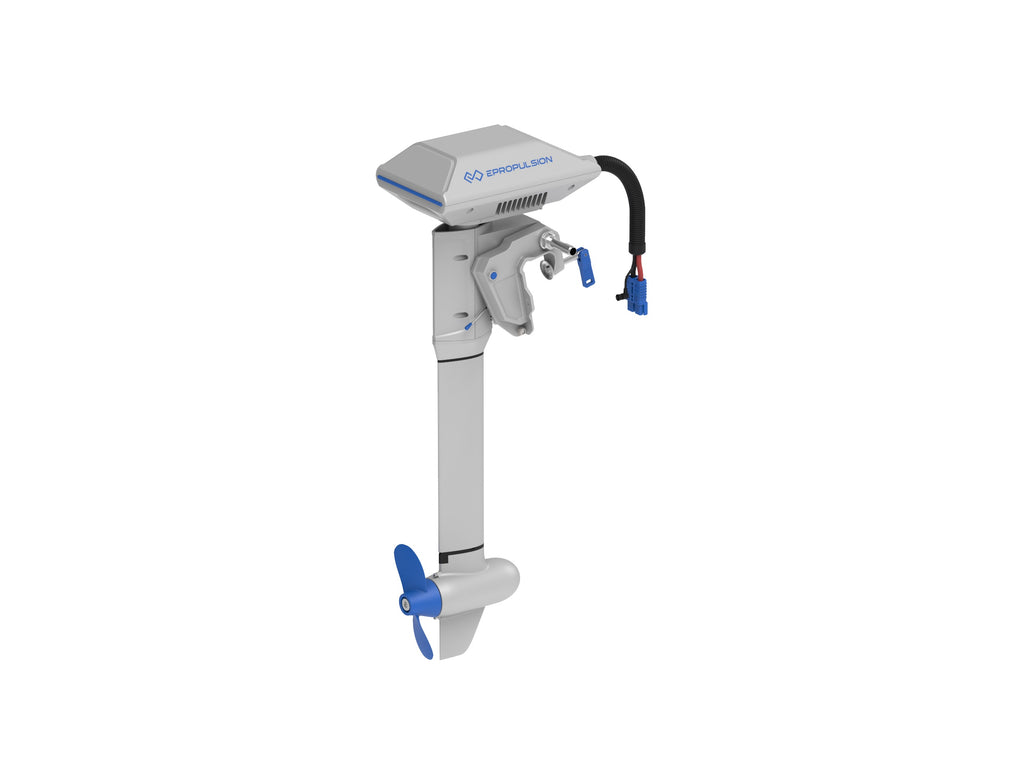

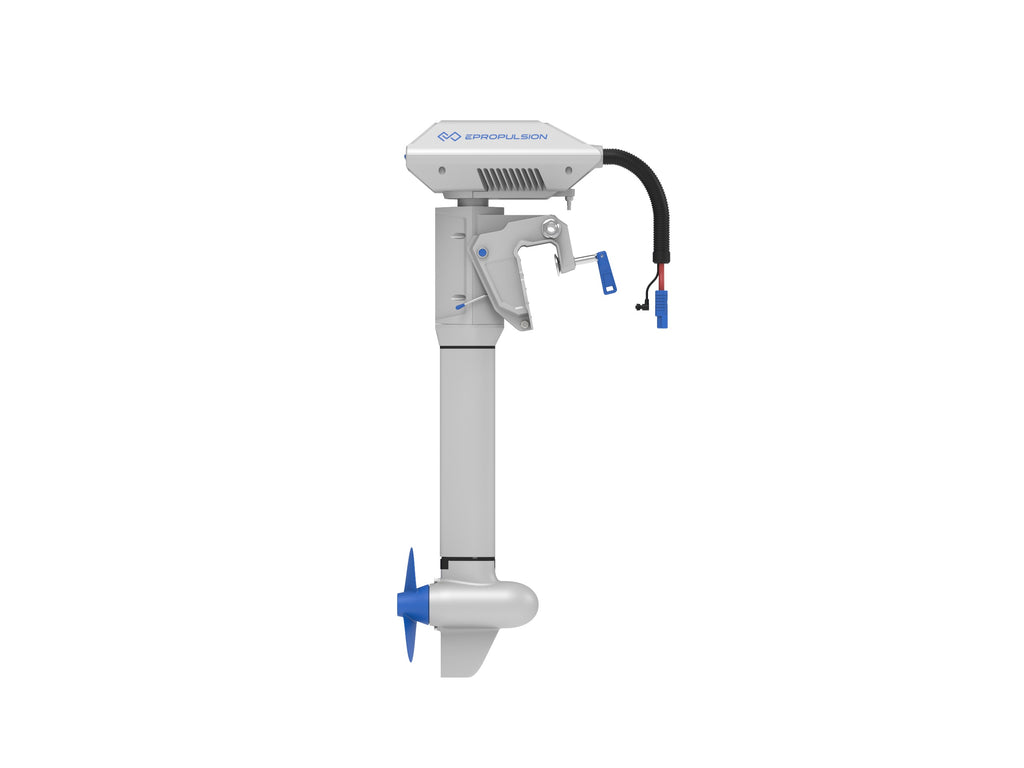

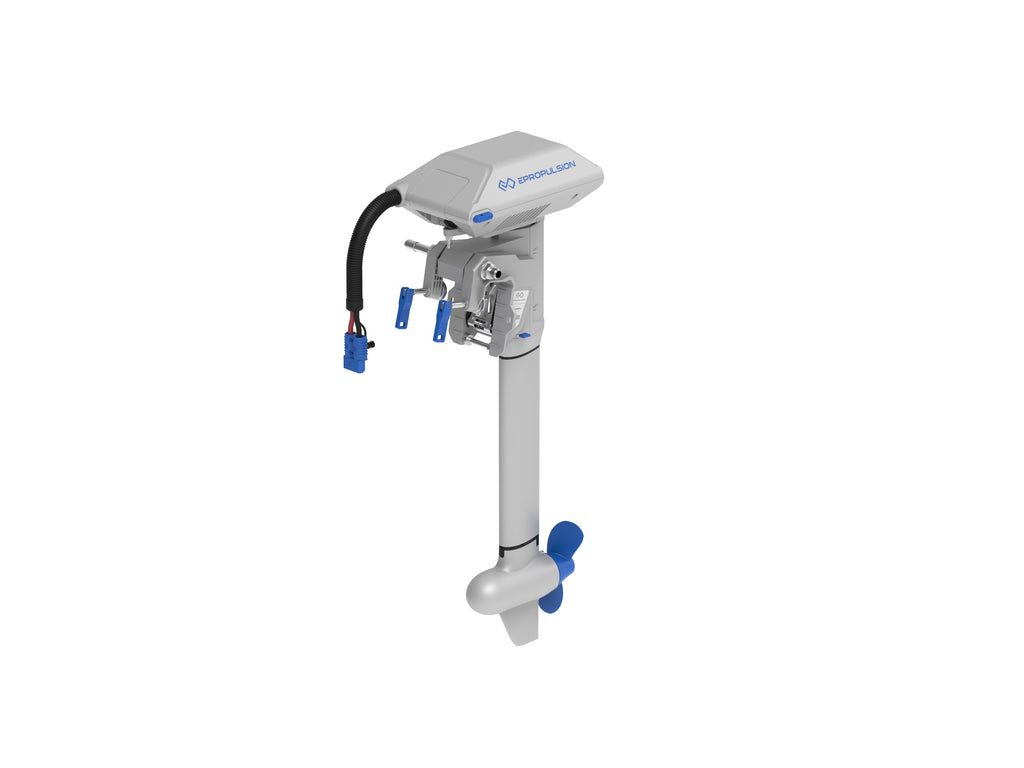

Navy 3.0 Evo

$4,200.00
  • Navy 3.0 Evo

Navy 3.0 Evo

$4,200.00
$4,200.00

YOUR PREMIUM ELECTRIC BOATING SYSTEM

The Navy series is the only direct-drive electric outboard at this power range. The have been made with fewer moving parts, no gearbox required. This means less vibration, noise free and high reliability.

Sailors will love this new feature. Only ePropulsion supplies electric outboard motors that have hydrogeneration functionality in the market.

 Specs (comparing the Navy 3.0 to the Navy 6.0)

 Navy 3.0 Evo

Navy 6.0 Evo

Power

3 kW / 6 HP

6 kW / 9.9 HP

Operation Voltage

48V (Input Range 39V - 60V)

48V (Input Range 39V - 60V)

Max Current Draw

62.5A

125A

Outboard Weight*

24.3kg (Control weight excluded)

36kg  (Control weight excluded)

Shaft Length

S: 64 cm, L: 76.5 cm

S: 64 cm, L: 76.5 cm

Static Thrust


590 N

 1243 N

(13.4′′ × 8.5′′ composite propeller)

Propeller RPM

 2300 rpm

 1500 rpm

 Propeller


10.2′′ × 6.7′′ 2-blade composite propeller

12.6′′ × 10.8′′ 3-blade composite propeller

13.4′′ × 8.5′′ 3-blade composite propeller
12.6′′ × 8.7′′ 3-blade aluminium propeller (optional)

 Trim / Tilt Angle

0°, 5°, 10°, 15° / 60°

0°, 5°, 10°, 15° / 60°

 Performance

 Navy 3.0 Evo








Power (W)

Speed  (kph)

Runtime (hh:mm)

Range (km)

300

6

13:20

79.3

550

7.5

7:25

56.3

1000

8.6

4:00

34.1

1500

9.7

2:40

25.7

2000

10.2

2:00

20.4

2500

12.8

1:35

20.5

3000

 16.4

1:20

 21.9

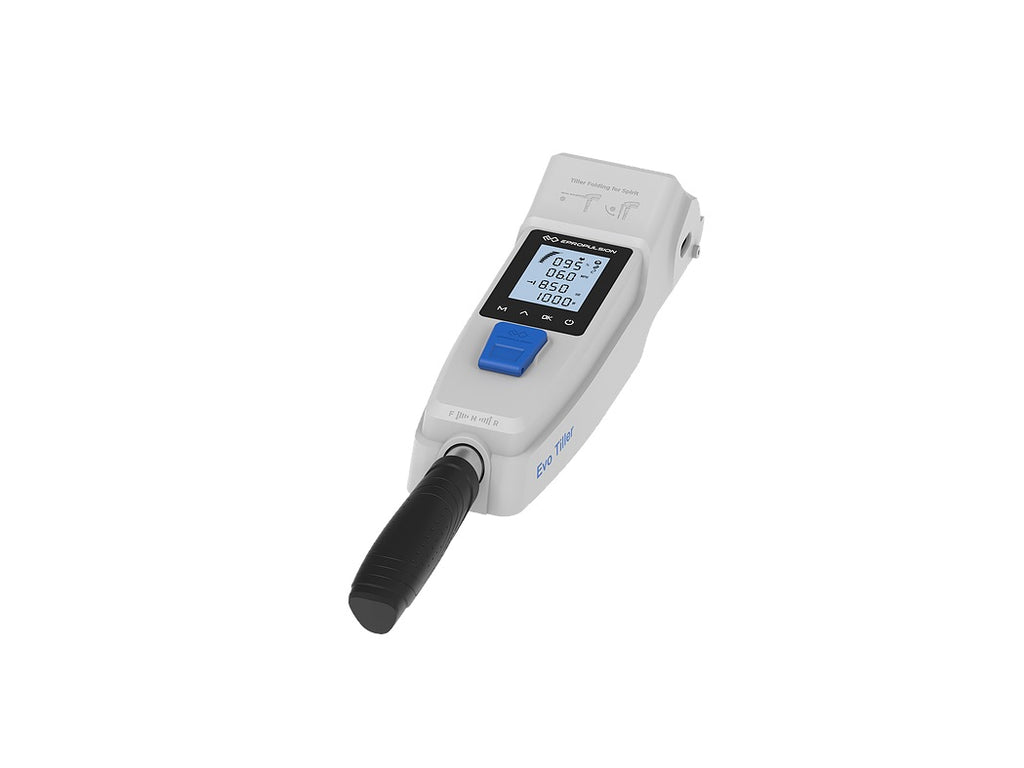

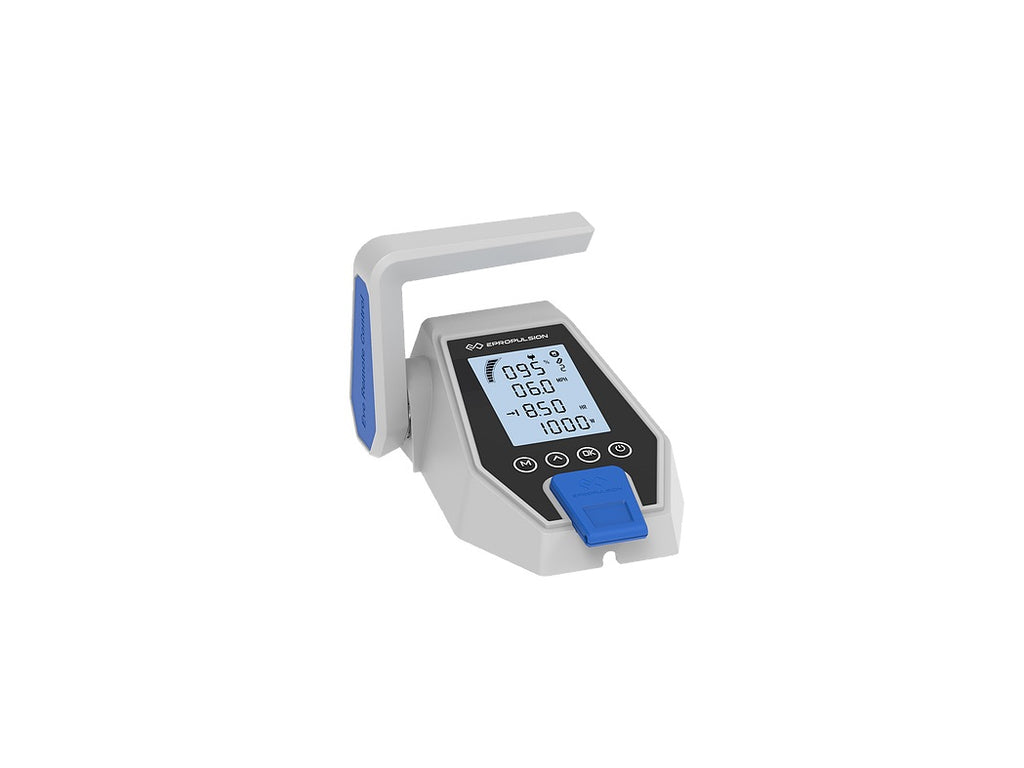

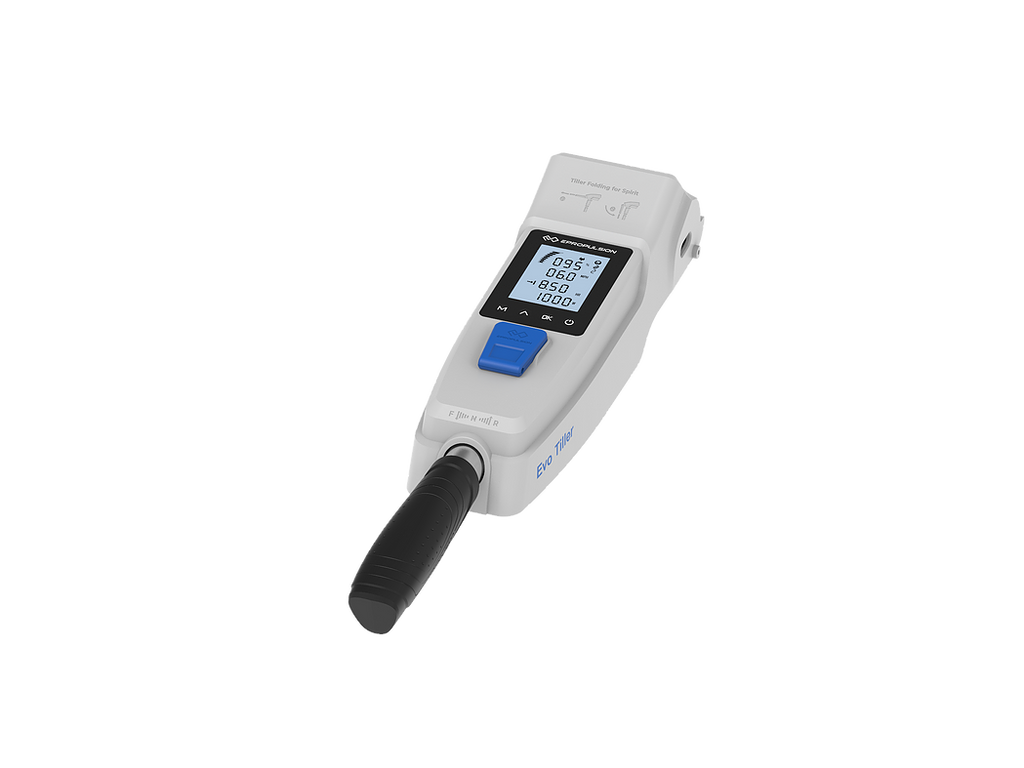

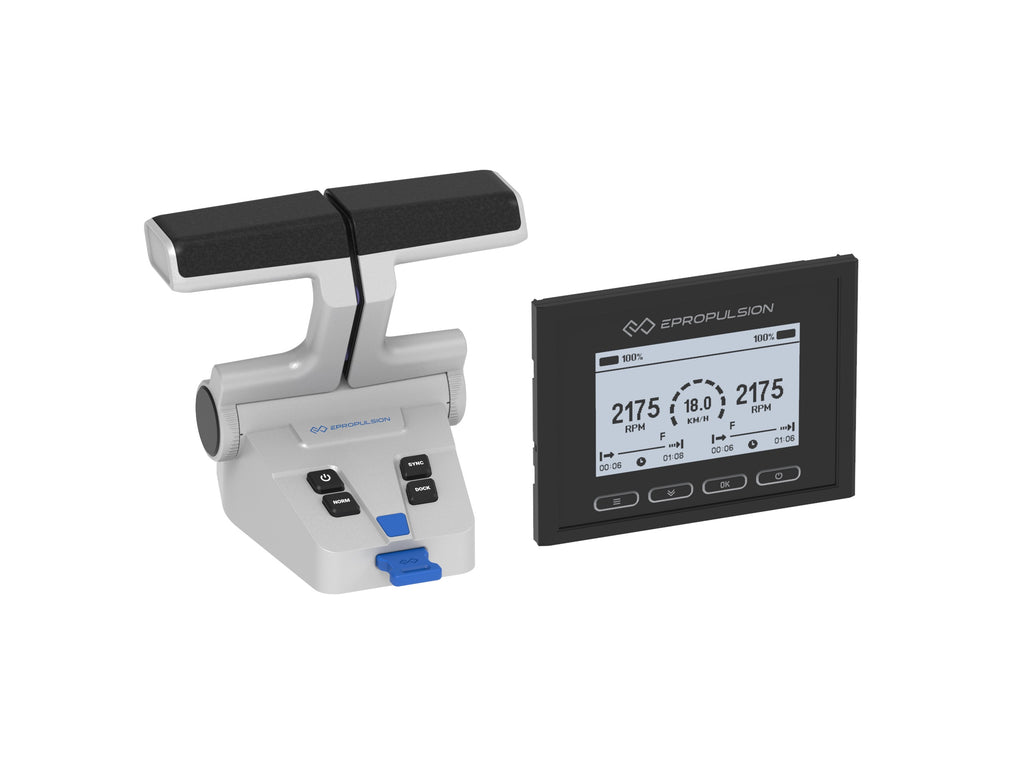

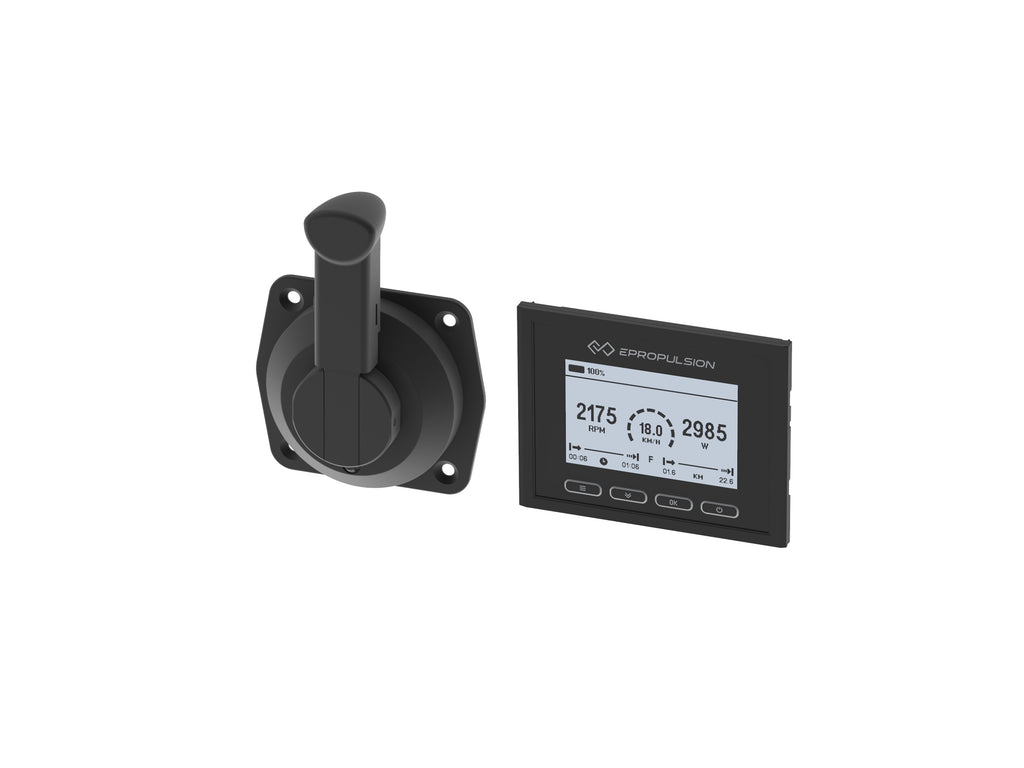

Choose which controller you would like with your Navy 3.0 Evo
The Price above is just for the Navy 3.0 Evo and controller.
View Frequently Bought Together below to add the battery and E battery charger to your cart.
